Fish Finder

$43.95 $21.95

In stock

32752349441




QQ图片20190420143555PRODUCT SPECIFICATION OF FFC1108-1:

1) Display: 2inch TN/ANTI-UV LCD

2) Back lighting: White LED

3) Depth Capability: 328feet(100m)

4) Power Requirement: 4xAAA alkaline batteries(not included)

5) Waterproof design: level-4 (spray-water-proof)

6) Show water depth, fish location, and bottom grass & rock

7) User selectable sensitivity,depth units, and fish alarm setting

8) Operational Temperature: 14degF to 122degF(-10degC to 50degC)

1 (1)

FFC1108-12

Please put the cable transducer in fishing spot.

FFC1108-13

The monitor displays information from sonar sensors that detect water and fish.

FFC1108-14

The transducer can detect water up to 100m,45degree beam angle in 200khz

1 (2)

有线探头动态图

Use fish finder in a smooth and hard place (like water tank, swimming pool, water bucket, or fish pond) will cause repeatedly sonar reception, or the detection can be inaccurate.
Please test in outdoor deep water.

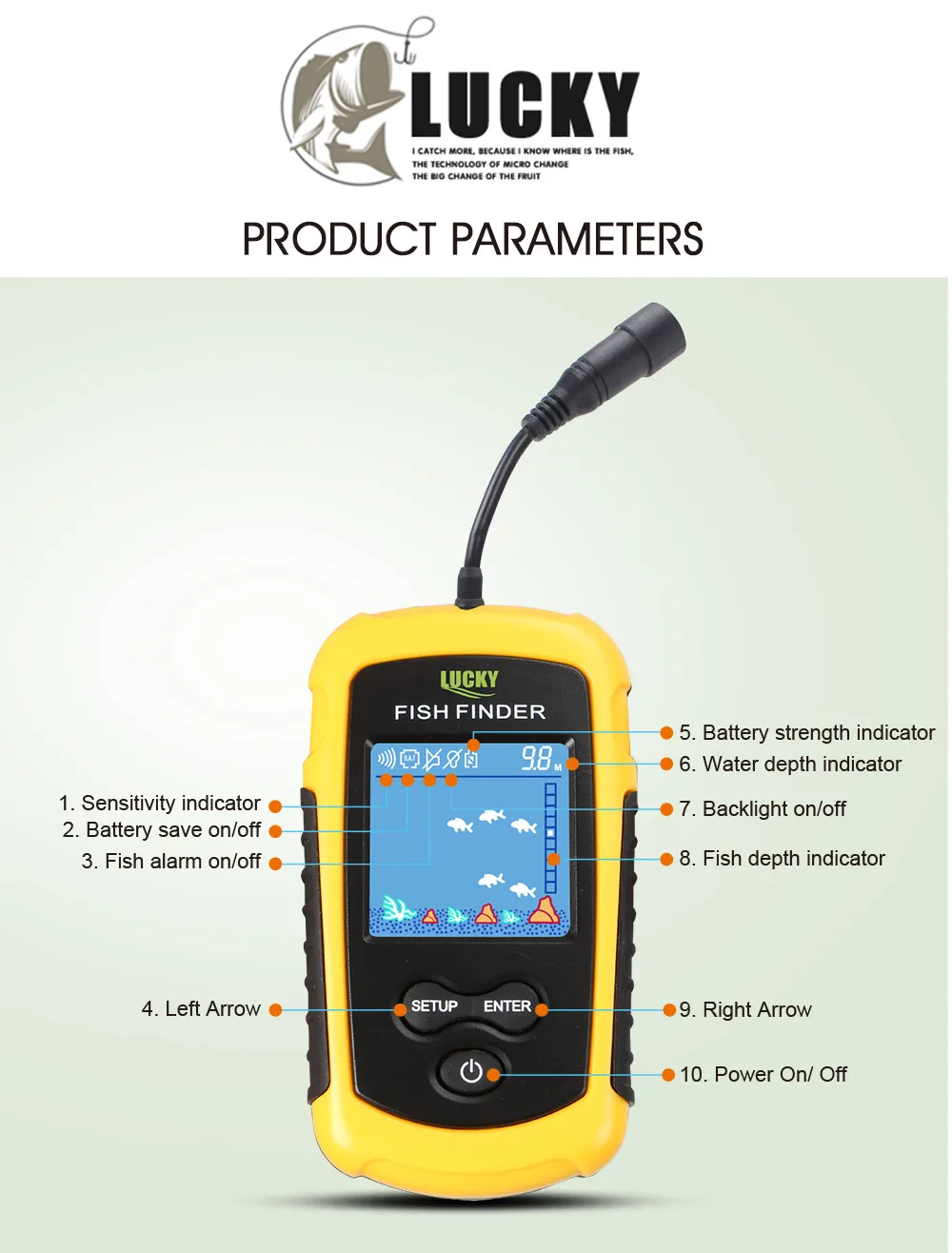

QQ图片20190330141437

1.Sensitivity indicator

2.Battery save on/off
3.Fish alarm on/off
4.Left Arrow
5.Battery strength indicator
6.Water depth indicator
7.Backlight on/off
8.Fish depth indicator
9.Right Arrow

10.Power On/Off

FF1108-1详情页7

1.Float 2.Transducer 3.Cable

1 (8)

FFC1108-15

Different fishing ways

1.Night Fishing Probe
2.Turbid Water Probe
3.Ice Fishing Probe


PRODUCT SPECIFICATION OF FFCW1108-1:

1) Display: 2inch TN/ANTI-UV LCD

2 )Back lighting: White LED

3) Depth Capability: 130feet(40m)

4) Wireless Sonar: 90 degrees beam angle in 125Khz

5) Wireless operational Range: 400feet(120m)

6) Power Requirement: 4xAAA alkaline batteries

7) Wireless Sensor battery reauirement: one replaceable CR2032 battery

8) Waterproof design: level-4 (spray-water-proof)

9) Show water depth, fish location, and bottom grass & rock

10) User selectable sensitivity , depth units, and fish alarm setting

11) Wireless Sensor could shut down when it is out of the water

12) Operational Temperature: 14degF to 122degF(-10degC to 50degC)



FFW1108-17

The wireless sensor cananti-clutter system automatically filter clutter

FFW1108-18

1108-1 has fish alarm

FFW1108-19

The sonar can detect water up to 100m,90degree beam angle in 125khz

FFW1108-110

The sonar can detect water up to 100m,90degree beam angle in 125khz

无线探头动态

Please use fish finder in outdoor deep water.

FFW1108-16



HOW TO USE LUCKY FISH FINDER?

01.tie it to the end of fishing line and cast it into the water

02.wireless sonar sensor send sound waves

03.returned echoes transmitted to the fish finder

QQ图片20190330143140

1. signal indicator 6.battery strength indicator

2. Sensitivity indicator 7.water depth indicator

3. Battery save on/off 8.backlight on/off

4. Fish alarm on/off 9.fish depth indicator

5. Left arrow 10.right arrow

11.power on/off

FFW1108-1探头

1.Seal Cover
2.Seal Ring
3.Battery Place
4.Sonar Detection
5.Hole tied to fishing line

1 (9)

Sonar Frequency

Cable: 200Khz

Power Input

AAA

Detecting Range

0.6-183 Meter

Language

English

Power Source

No. 7 Battery

Display

2inch TN/ANTI-UV LCD

Back lighting

On/off White LED

Depth Capability of FFC1108-1

328 feet( 100 m)

Sonar Coverage

45 degrees beam angle in 200Khz of FFC1108-1

Power requirement

4* AAA batteries

Waterproof design

Level-4 (spray-water-proof)

Manual Approved Language

English & Russian & German & Japanese

Depth Capability of FFCW1108-1

130feet(45m)
